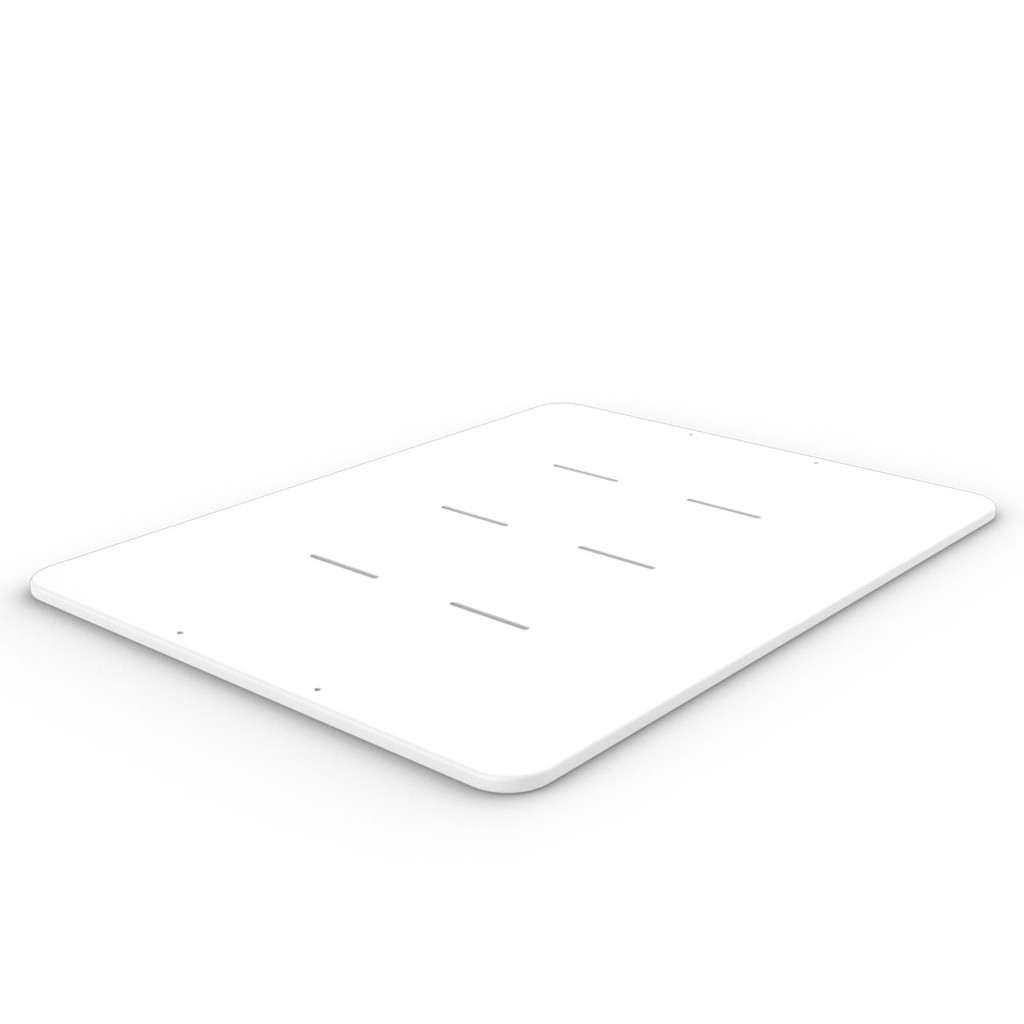

ATI Straton Pro 204 Flat Panel LED Light – White

The ATI Straton Pro combines maximum efficiency with exceptional functionality and world-class design. The updated design builds on the success of the original ATI Straton producing 30% more output and improved efficiency. The larger format improves light spread, and the updated software enhances control. Optimized to maximize coral growth and color, the ATI Straton Pro is available in three sizes and two unique colors.

• Increased PAR
• Increased Efficiency
• Improved Light Spread
• Control via Smartphone or Desktop applications
• Straton Pro is available in three sizes: 102 (12.6 in. x 18.5 in.) / 153 (18.5 in. x 18.5 in.) / 204 (24.0 in. x 18.5 in.)
• 2 Colors; Anthracite Gray and White

Uniform Light Distribution

The built-in proprietary diffuser blends the individual LED lights, virtually eliminating color separation. The large output area blankets the entire tank with a consistent, uniform output.

App Controllable

New for the Straton Pro, the ATI ReefTech smartphone application makes producing a fully customized lighting schedule quick and easy.

Ultra-thin Aluminum Housing

The housing measures less than ½ in. thick, 0.46 in., and uses no plastic. The 100% aluminum body maximizes heat dissipation.

Virtually Limitless Color Possibilities

Achieve almost any color spectrum with the large number of LEDs and a variety of color spectrums.

Enhanced Power Distribution

Higher light output is possible thanks to improved control logic. Reducing the intensity of one color makes the unused power available for other color channels.

Estimated Par Values

Know where to place corals by estimating par values at different mounting heights directly through the control interface.

Specifications

• Dimensions: 24.0 in. x 18.5 in. x 0.5 in. (L x W x H)
• Weight: 16.2 lbs
• Color: White
• Power Consumption: up to 290W
• Power Input: 120V
• Power Cord Length: 6 ft
• Warranty: 1-year manufacturer

Light Specifications

• Number of LEDs: 204; 24x UV 405nm, 24x Violet 420nm, 24x Royal Blue 450nm, 48x Blue 470nm, 40x Cyan White, 24x Clean White, 8x Cyan 500nm, 12x Red
• Number of LED Channels: 7
• Spectrum: Full Spectrum
• Lenses/Reflectors: Reflectors for each LED
• Recommended Illumination Area for SPS: 36 in. x 28 in.
• Recommended Illumination Area for LPS: 40 in. x 32 in.
• Control: Wi-Fi Controllable
• Mounting Options: Included Hanging Kit
• Suggested Mounting Height: 8-12 in.

What’s Included

1. ATI Straton Pro Fixture
2. Hanging Kit
3. Power Supply
4. Six Foot Power Cord (110V)
